FreeCAD – The hardest unit so far but i finally got it at the end and weeks of trying!

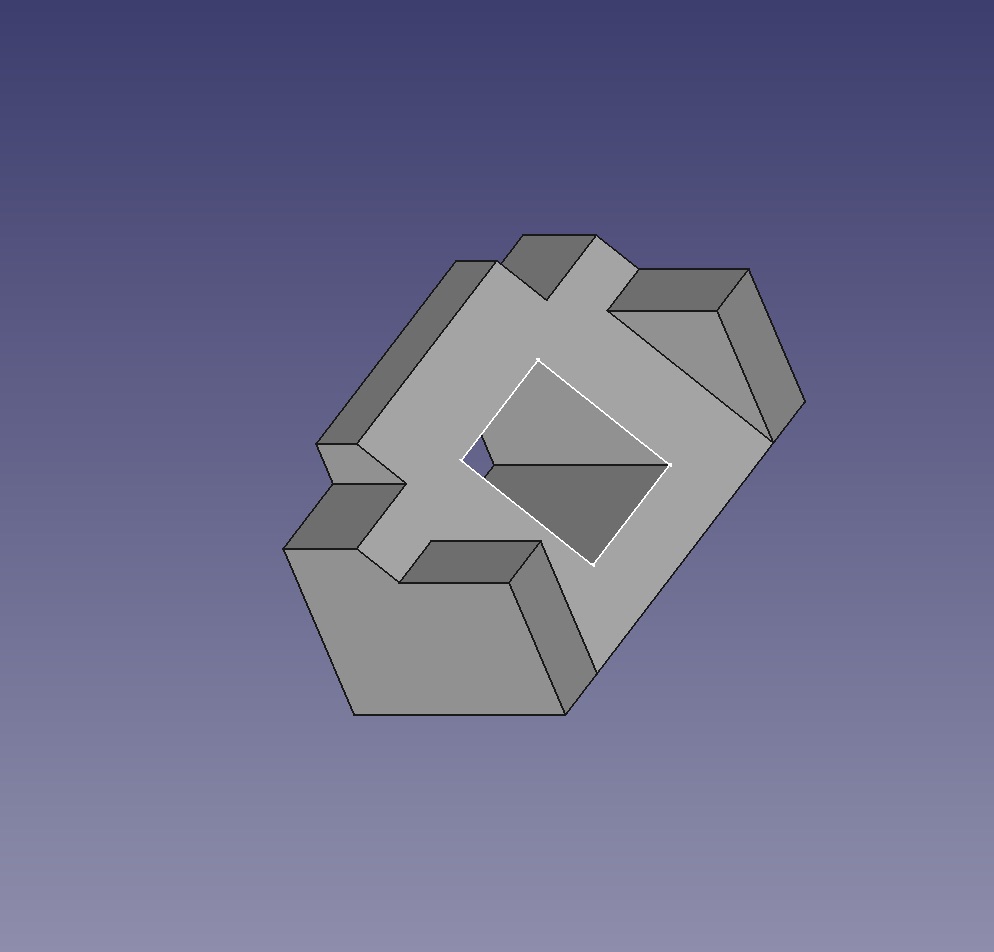

Object #1…. this we followed a basic tutorial on wiki (which in college we are told never to do so ironic?)

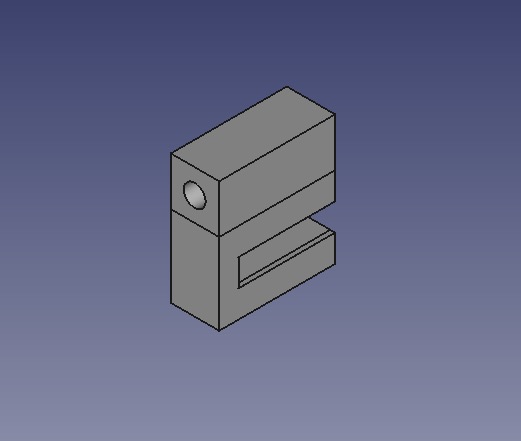

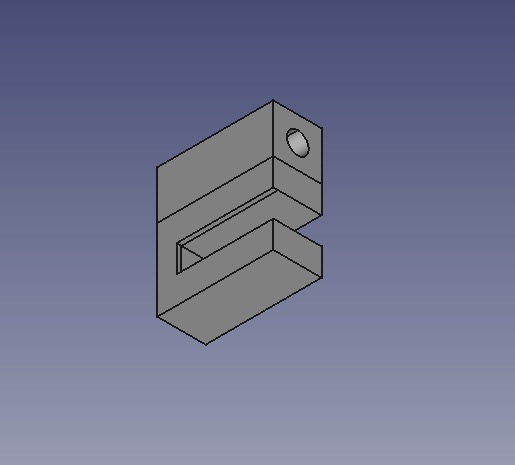

Object #2- Desk – I made sure to make the inside 26mm to fit tightly onto the edge of the desk, the circle around was made to fit directly to my cord for my laptop pictures. I started by drawing out the bottom piece that looks like an L shape and making sure all the right measurement was correct and equal. Then I added the top block and cut out a center circle. – you said brief right?

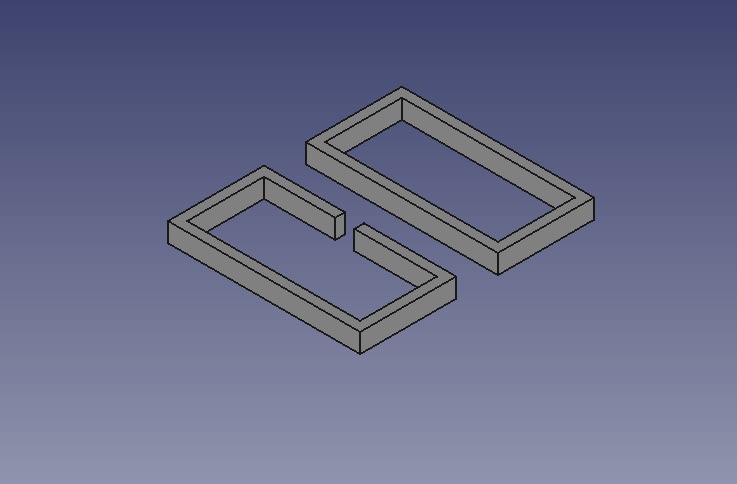

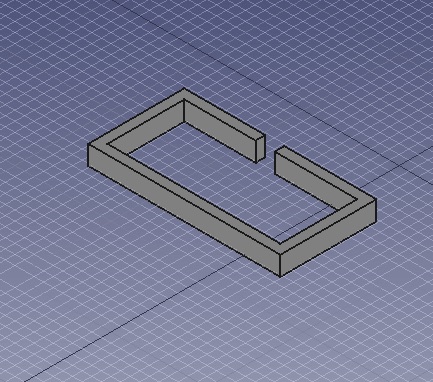

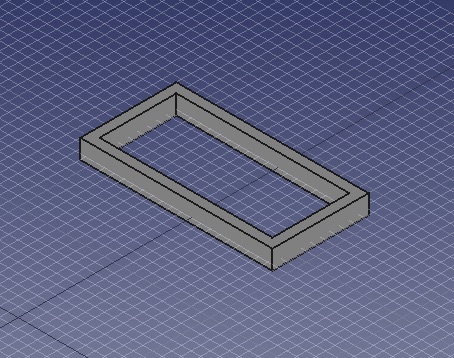

Object #3 – the hardest part of this was thinking of something, I don’t know if I did it right, but I created a square type of Olympic ring type of thing. It’s the only thing I could think of I know it’s kinda lame. I draw them both out in in the sketch part. I made the hole 2mn which will fit tightly around the second square and you will have to open the hole a little to get the second piece in. Once it is secure around the second square they shouldn’t fall apart.
PLEASE BE NICE ON GRADING. I HAVE BEEN SO CRAZY STRESSED AND LOST MY JOB IN TALLAHASSEE BECAUSE OF ALL OF THIS SO THIS IS THE BEST I COULD DO. I BARELY EVEN HAD TIME TO PUT ALL THIS TOGETHER. PLEASE PLEASE PLEASEEEEEEEEEEEE
