SO HERE IS PART 1 AS A REMINDER!!
So i guess this was a fairly basic part I had to create for this. I designed and rendered a mirror piece for the bottom of my door to attach to the very bottom so that it covered the gap and actually I rendored it as a mirror as both my cats and dog dont like to see themselves ever in a mirror so that way if they are scared and seeing the bottom of the door they will also be too scared to even try to put their paws under. I THINK THIS IS THE PERFECT SOLUTION.

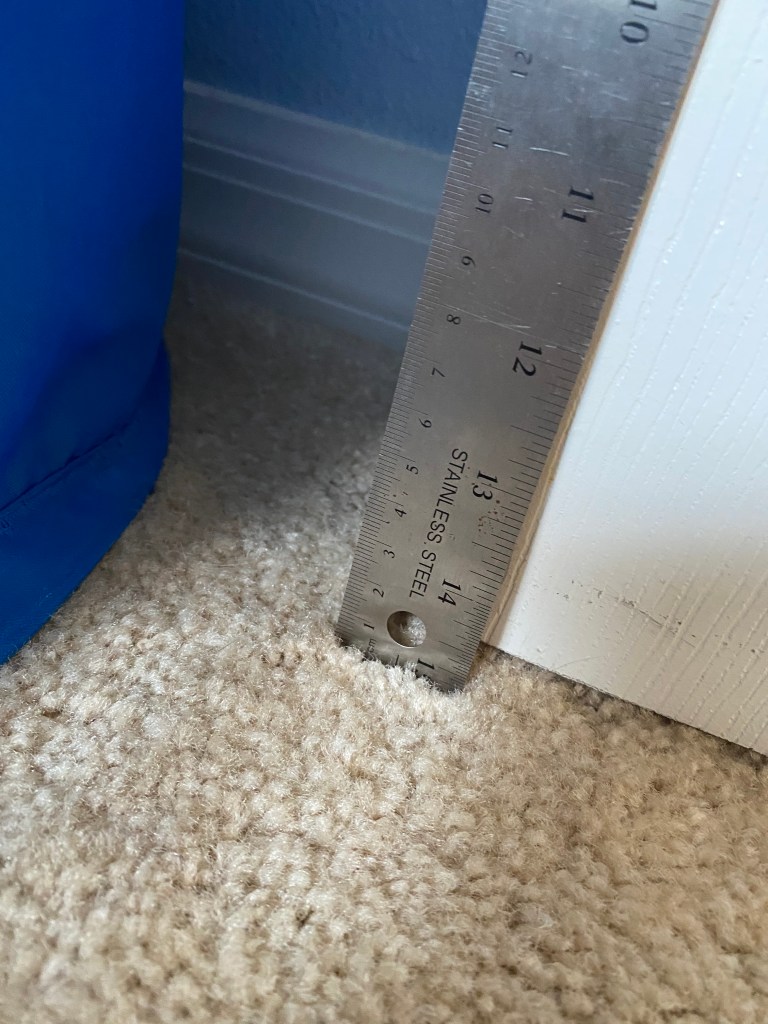

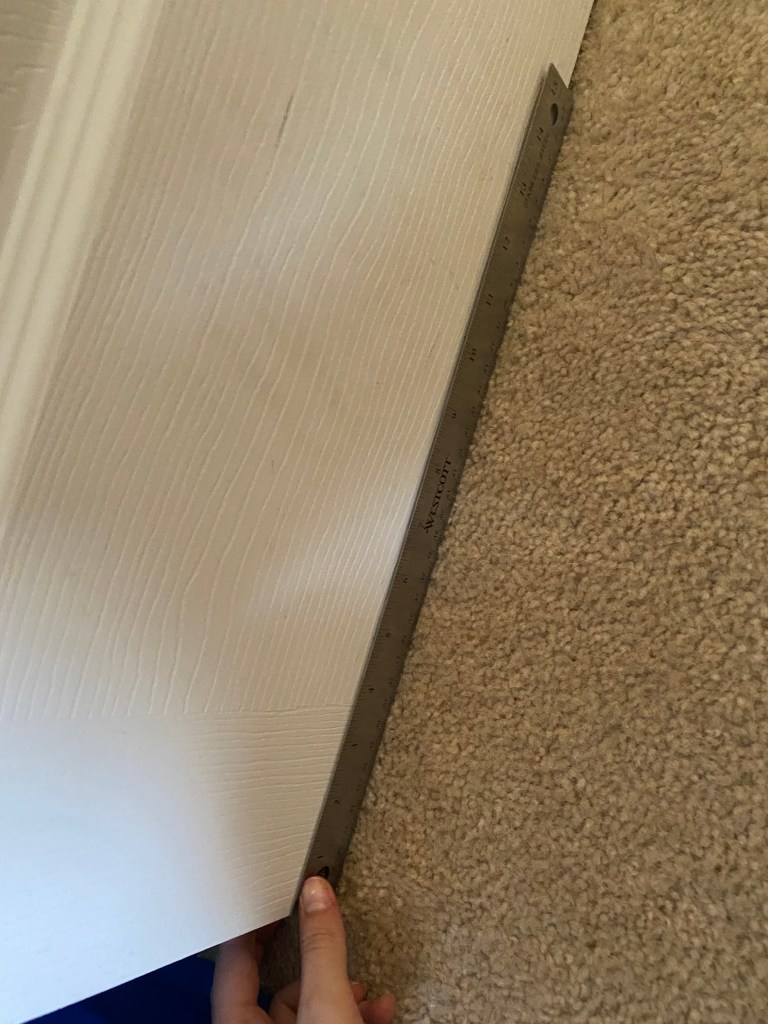

So this is how I started I measured the door and also the length of how much I could put the mirror piece to it didn’t fully stop the door from closing.
So it came out to be 31inches and I did 3cm width was this was the side I thought would be best to fit the double sided tape tp stick it onto the door.
31inches =787.4 mm and 3cm = 30mm So these are the exact dimensions I put into FUSION 360.

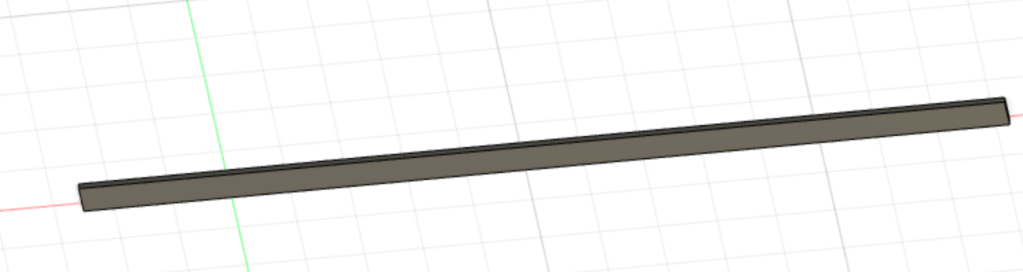

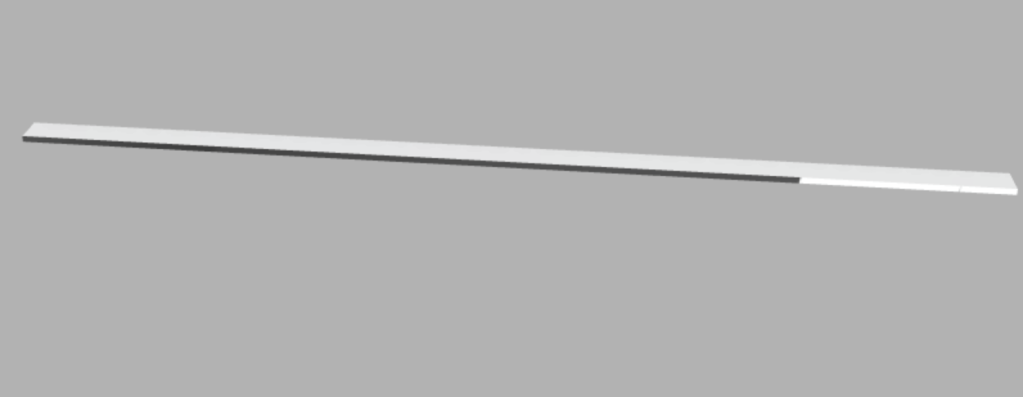

So I started with just a simple cube shape in fusion and then inputted the correct length and width.

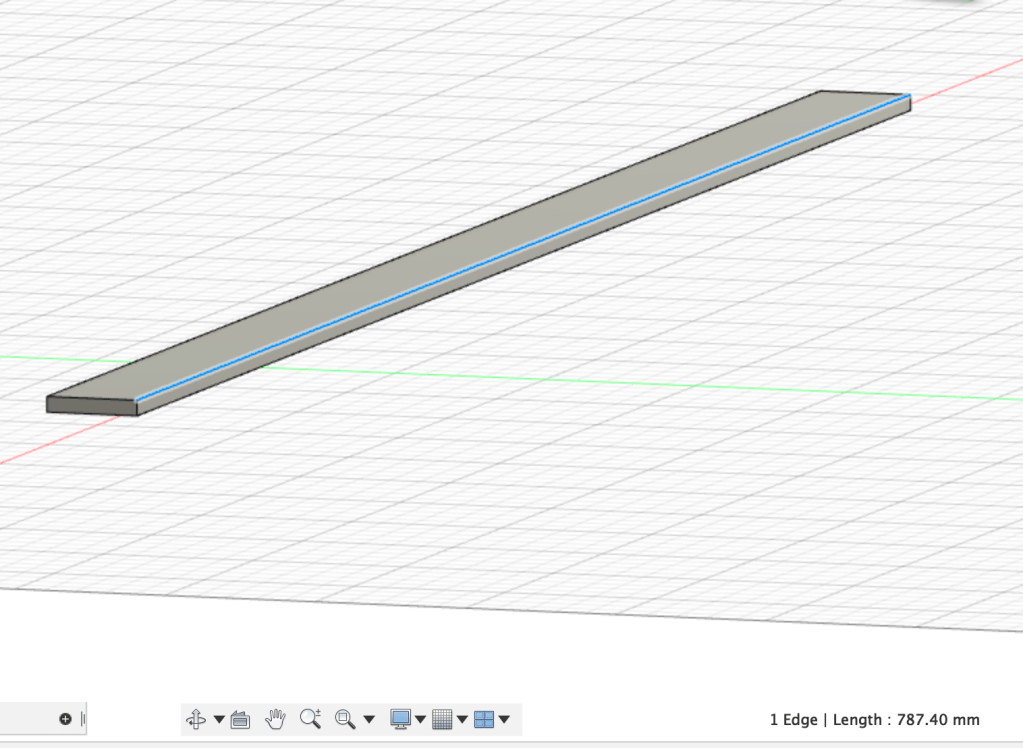

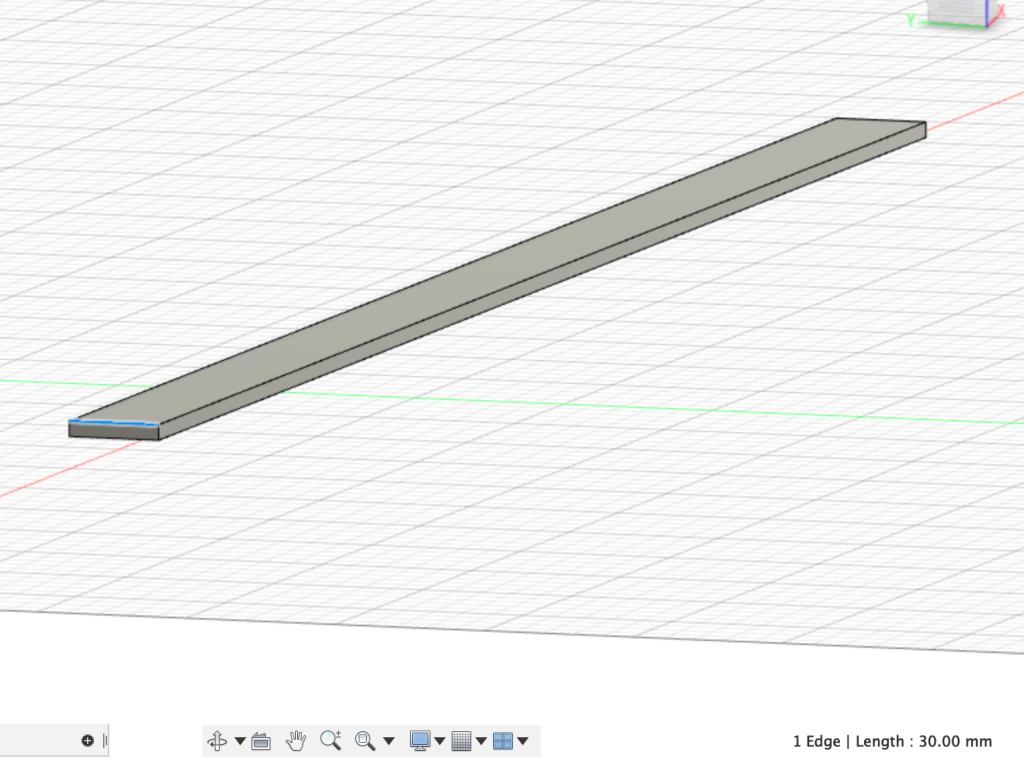

As you can see at the bottom of each of the last two pictures there is the exact measurements perfect to fit the length of the door.

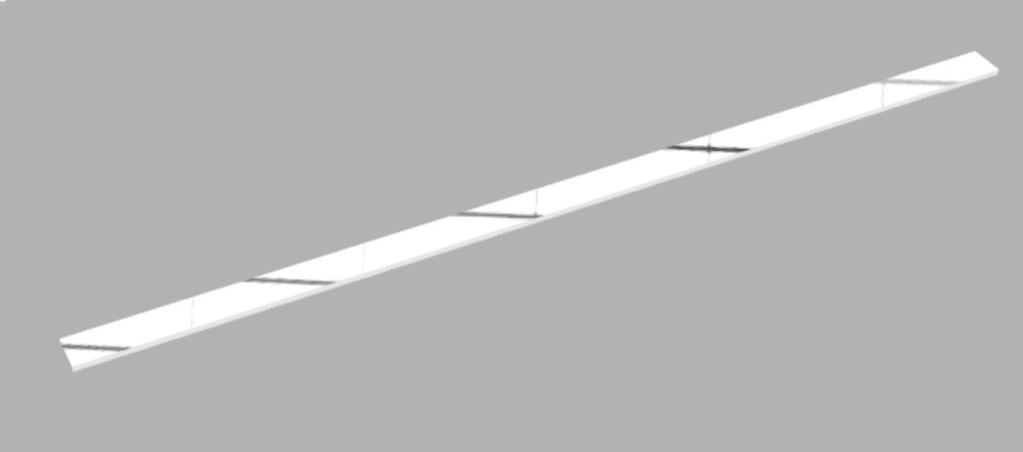

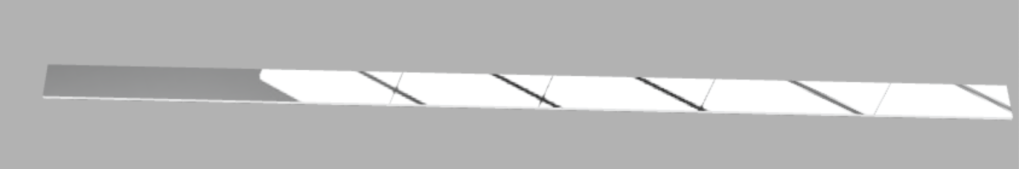

next I rendered the piece into the mirror feature. This is a little difficult to show on pictures but you can see it is reflecting the fusion background.
PART 3 –
So I am awful at photoshop so I was trying to be a little artistic and not totally idiotic so this is the best I could do…
LOOK AT THAT CUTE DOG NOT BEING ABLE TO PUT THE PAW UNDER AND SCARED OF HER REFLECTION IN THE MIRROR!!!!!
NOW LOOK AT THE CAT ALSO NOT ABLE TO PUT HER PAW UNDER AND CHECKING OUT THE MIRROR!

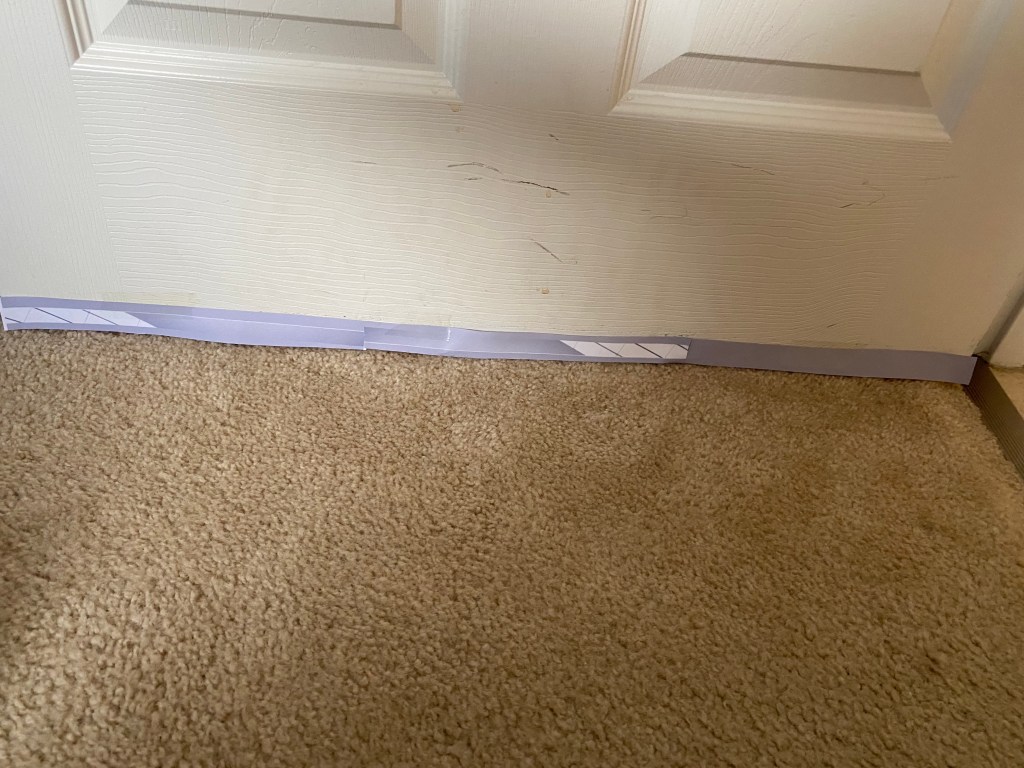

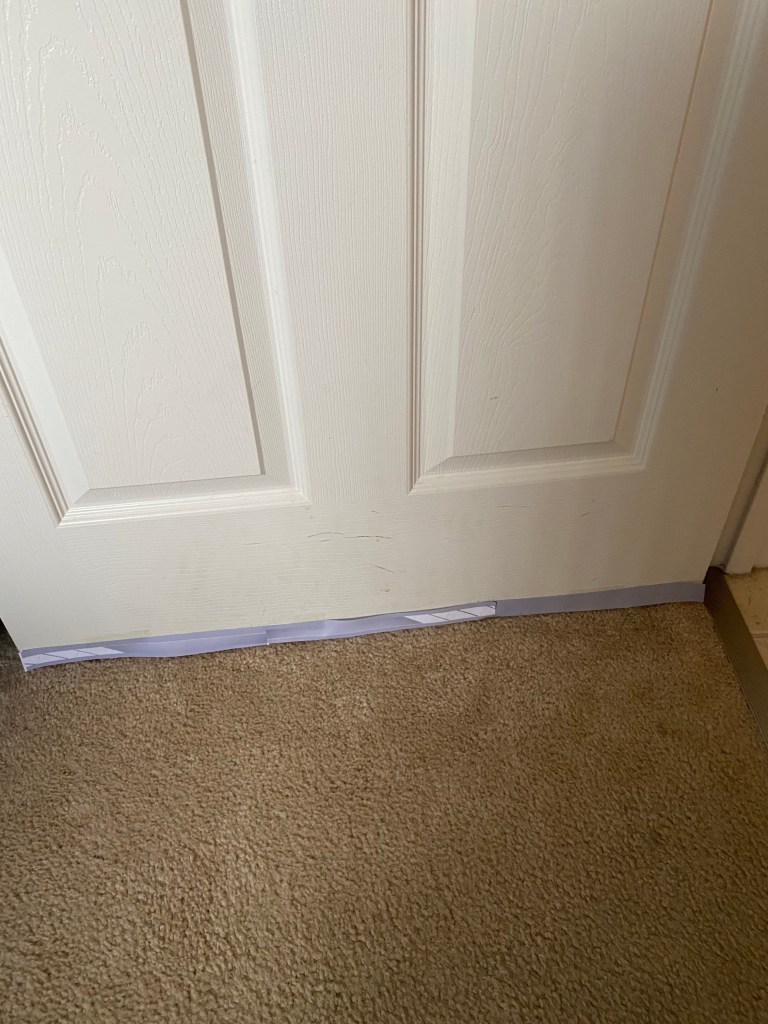

HERE IS THE MAGNIFICENT MIRROR ON THE BOTTOM OF THE DOOR!
okay so I know this was kind lame but it was the best I could do. I hope you appreciate the cute animals and thank you so much for all the laughs this semester!
